চাপ সংবেদক
>
পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর

পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর

পণ্যের বিবরণ:
Place of Origin: CHINA
পরিচিতিমুলক নাম: RUIJIA
সাক্ষ্যদান: CE
Model Number: RJ400
বিস্তারিত তথ্য
Place of Origin:
CHINA
পরিচিতিমুলক নাম:
RUIJIA
সাক্ষ্যদান:
CE
Model Number:
RJ400
Mounting Type:
standard installation
Description:
Digital display pressure transmitter
Output:
4~20mA
Response time:
-30℃~85℃
Ambient temperature:
-20℃~85℃
Medium temperature:
≤50ms
বিশেষভাবে তুলে ধরা:

High Light

বিশেষভাবে তুলে ধরা:

মেডিকেল চাপ সেন্সর

,

নিম্ন চাপ সেন্সর

,

গ্যাস চাপ সেন্সর

Trading Information
Minimum Order Quantity:
1
মূল্য:
USD10.6-120/piece
Packaging Details:
Standard export packaging
Delivery Time:
Within 2Weeks
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
2000 Piece/Pieces per Month
পণ্যের বর্ণনা

wholesale low pressure sensor 420ma medical pressure sensor গ্যাস চাপ সেন্সর

পণ্যের বর্ণনা
পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর 0

<বৈশিষ্ট্য>


• Protective shell design, which can be equipped with on-site display module. • সুবিধাজনক ইনস্টলেশন এবং স্টেইনলেস স্টীল হাউজিং।• This product is composed of important components such as circuit board and sensor • এই পণ্যটি গুরুত্বপূর্ণ উপাদানগুলির সমন্বয়ে গঠিত যেমন সার্কিট বোর্ড এবং সেন্সর.
পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর 1
RUIJIA প্রযুক্তিগতভাবে পাশাপাশি অর্থনৈতিকভাবে আকর্ষণীয় সমাধানগুলি সরবরাহ করে যা চাপ পরিমাপের বিস্তৃত কাজের জন্য।আপনি সর্বদা সর্বোচ্চ মানের পণ্য এবং প্রতিযোগিতামূলক মূল্য থেকে উপকৃত.RUIJIAsensor approved CEinternational certificates. RUIJIA instruments are reliable and safe applied to the fields of petroleum, water treatment, Chemical industry, metallurgy, chemical industry..................................................................................................................................................................................................................পাওয়ার স্টেশন এবং জলবিদ্যুৎ ইত্যাদি.

পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর 2

স্পেসিফিকেশন
প্রযুক্তিগত পারফরম্যান্স
শক্তি
ডিসি ২৪ ভোল্ট (১২ ভোল্ট এবং ৩২ ভোল্ট)
প্রতিক্রিয়া সময়
-40 থেকে 145°C, -40 থেকে 180°C, -40 থেকে 250°C, -40 থেকে 300°C
পরিবেশে তাপমাত্রা
-২৫° সেলসিয়াস
মাঝারি তাপমাত্রা
≤50ms
নির্ভুলতা শ্রেণি
গ্রেড ০।5গ্রেড ০।2
আউটপুট
4mA ⇒ 20mA (optional display), 0 থেকে 10mA/ 0 থেকে 5V/RS232/RS485/HART প্রোটোকল
পরিমাপ পরিসীমা
-০-১ বার... ৬০০ বার অপশনাল
পরিমাপ পরিসীমা
ডিফুজড সিলিকন সেন্সর (ন্যূনতম পরিমাপ পরিসীমা 5kPa)
পরিমাপ পরিসীমা
Grade 0.5 within measuring range ((0-100) MPa/ Grade 0.2 within measuring range (0 - 5) MPa (০-৫ এমপিএ)
পরিমাপ পরিসীমা
Ceramic sensor (minimum measuring range 160kPa) / Grade 0.5 within measuring range 0MPa - 20MPa সিরামিক সেন্সর
লোড ক্যাপাসিটি (DC 24V)
Current type≤500Ω ((without display) / Current type ≤250Ω (with display). ভোল্টেজ টাইপ ≥3kΩ
পুনরাবৃত্তিযোগ্য
±0.1% F·S
দীর্ঘমেয়াদী স্থিতিশীলতা
±0.1% F·S
অ-রৈখিকতা
±0.2% F·S
থার্মাল জিরো-পয়েন্ট তাপমাত্রা ড্রিফট প্রতি ডিগ্রী
±0.02% F·S
অতিরিক্ত চাপ
2 times measuring range 2 বার পরিমাপ পরিসীমা
বৈদ্যুতিক সংযোগ
ওয়্যারিং টার্মিনাল
Material of external parts বাহ্যিক অংশের উপাদান
Ordinary stainless steel / 316L স্টেইনলেস স্টীল
শেল উপাদান
অ্যালুমিনিয়াম খাদের হাউজিং
সুরক্ষা স্তর
আইপি ৬৫
পণ্যের ওজন
১১৫০ গ্রাম
পরিমাপ মাধ্যম
Oil, water, gas and other substances compatible with 316 stainless steel তেল, পানি, গ্যাস এবং অন্যান্য পদার্থ compatible with 316 stainless steel

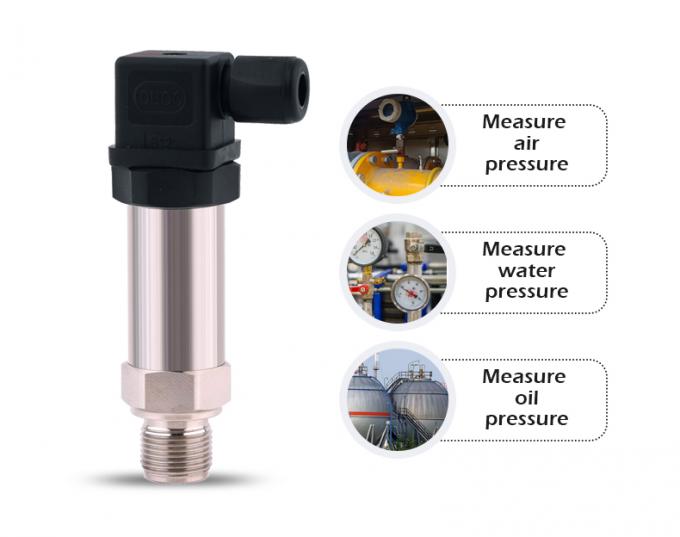

এটা কি পরিমাপ করতে পারে?

Measure air pressure. Measure water pressure.Measure oil pressure.The medium temperature ranges from -35 °C to 85 °C. পরিষ্কার এবং অ-ধূলিকারক তরল এবং গ্যাস।
পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর 3

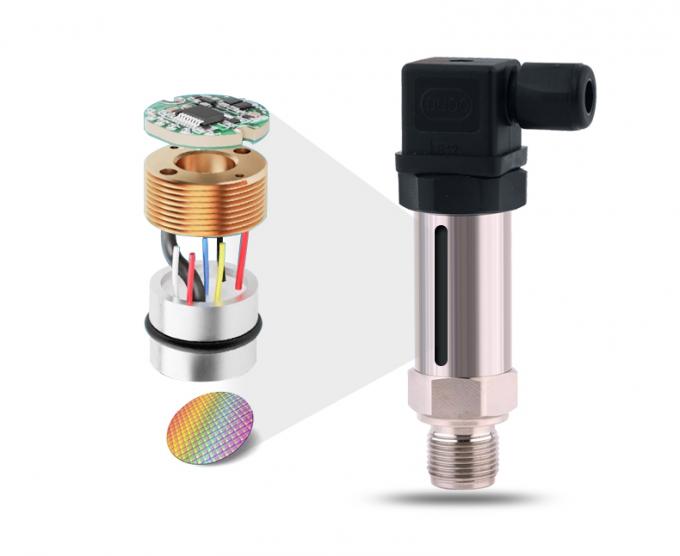

হাই-প্রিসিশন

FTS high-stability diffused silicon crystals, with an accuracy of±0.1% FS এবং ±0.25% FS.
Precise, stable, more reliable and with a long service life সুনির্দিষ্ট, স্থিতিশীল, আরো নির্ভরযোগ্য এবং দীর্ঘ সেবা জীবন
পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর 4

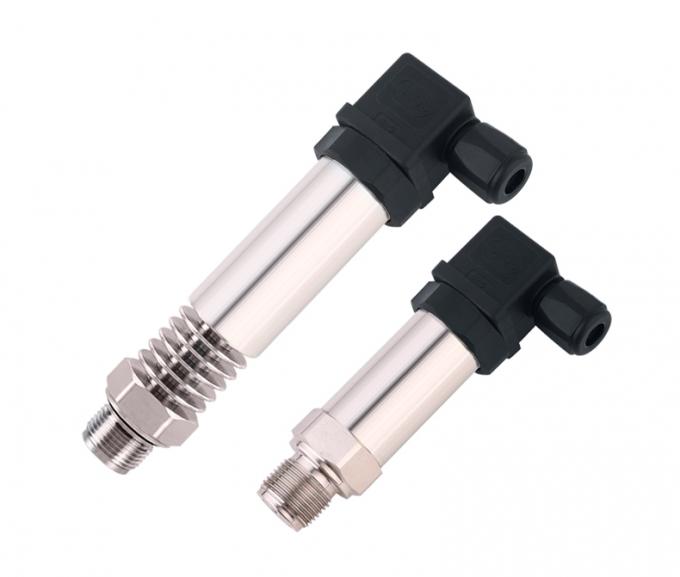

স্বয়ংক্রিয় তাপমাত্রা ক্ষতিপূরণ

একাধিক স্তর তাপ sinks দক্ষ তাপ dissipation সক্ষমEquipped with 3 to 10 pieces of 304 stainless steel heat sinks, the efficient heat dissipation ensures precision. 3 থেকে 10 টুকরা 304 স্টেইনলেস স্টীল তাপ সিঙ্ক দিয়ে সজ্জিত, দক্ষ তাপ অপসারণ নির্ভুলতা নিশ্চিত করে।
পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর 5

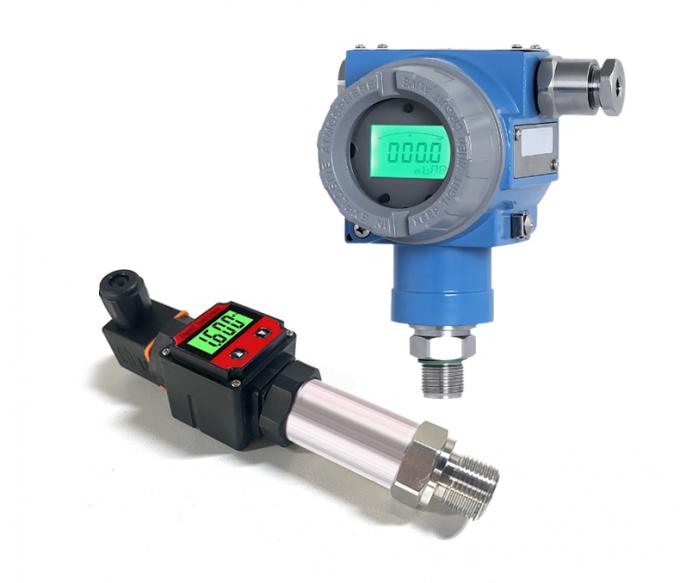

এলসিডি প্রদর্শন

The readings are intuitive and clear, with high reliability and are not affected by external power supply interference. The readings are intuitive and clear, with high reliability. The readings are intuitive and clear, with high reliability and are not affected by external power supply interference. The readings are intuitive and clear, with high reliability and are not affected by external power supply interference. The readings are intuitive and clear, with high reliability and are not affected by external power supply interference. The readings are intuitive and clear, with high reliability and are not affected by external power supply interference.
পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর 6
পণ্যের বর্ণনা
পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর 7
পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর 8
পাইকারি কম চাপ সেন্সর 420ma মেডিকেল চাপ সেন্সর গ্যাস চাপ সেন্সর 9
প্রায়শই জিজ্ঞাসিত প্রশ্ন

1. বিস্তারিত তথ্য কিআমিপ্রদান করতে হবে যদিআমিঅর্ডার করতে চান?

আমাদের নিম্নলিখিত তথ্য জানতে হবে:ক্ষমতা, ব্যবহারএবং অন্যান্য সংশ্লিষ্ট পরামিতি তোমার দরকার।

2তোমার কি কোন ছাড় আছে?

হ্যাঁ, আপনি যদি বড় পরিমাণে কিনে থাকেন, তাহলে দয়া করে আমাদের একটি ইমেইল পাঠান, আমরাvতুমি একটা বড় ডিসকাউন্ট পাবে।

3কোন পেমেন্টের শর্তাবলী আছে?

আমরা গ্রহণ করিটি/টি, এল/সি, বাণিজ্য নিশ্চিতকরণ,নিরাপদ অর্থ প্রদান,ওয়েস্টার্ন ইউনিয়ন, পেপাল, টাকা গ্রাম ইত্যাদি।

4.আপনি কখন প্রযোজনা ব্যবস্থা করবেন?

আমরা করবোআপনার পেমেন্ট পাওয়ার পর অবিলম্বে উৎপাদন ব্যবস্থা করুন.

5আপনি কিভাবে পণ্যের গুণগত মান নিশ্চিত করবেন?

আমরা একটি সম্পূর্ণ মান নিয়ন্ত্রণ ব্যবস্থা আছে, আমাদের সব পণ্য সম্পূর্ণরূপে জাহাজ আগে IQC, OQC বিভাগ দ্বারা চেক করা হয়পিংআমাদের ক্লায়েন্টদের কাছে।
